From script to stage · Part 02: Inside Chronicle

Sep 30, 2026 - 11 min read

Cratis: from script to stage, and the long run · Part 02 of 26

When Append returns in Chronicle, the event has been checked, numbered and written to storage, and nothing has waited for a projection. The read model that will show the event is updated afterwards, by a different part of the server, on its own schedule. A read straight after a write that misses the event, and a list that stays empty while the log has the event, both come from that gap.

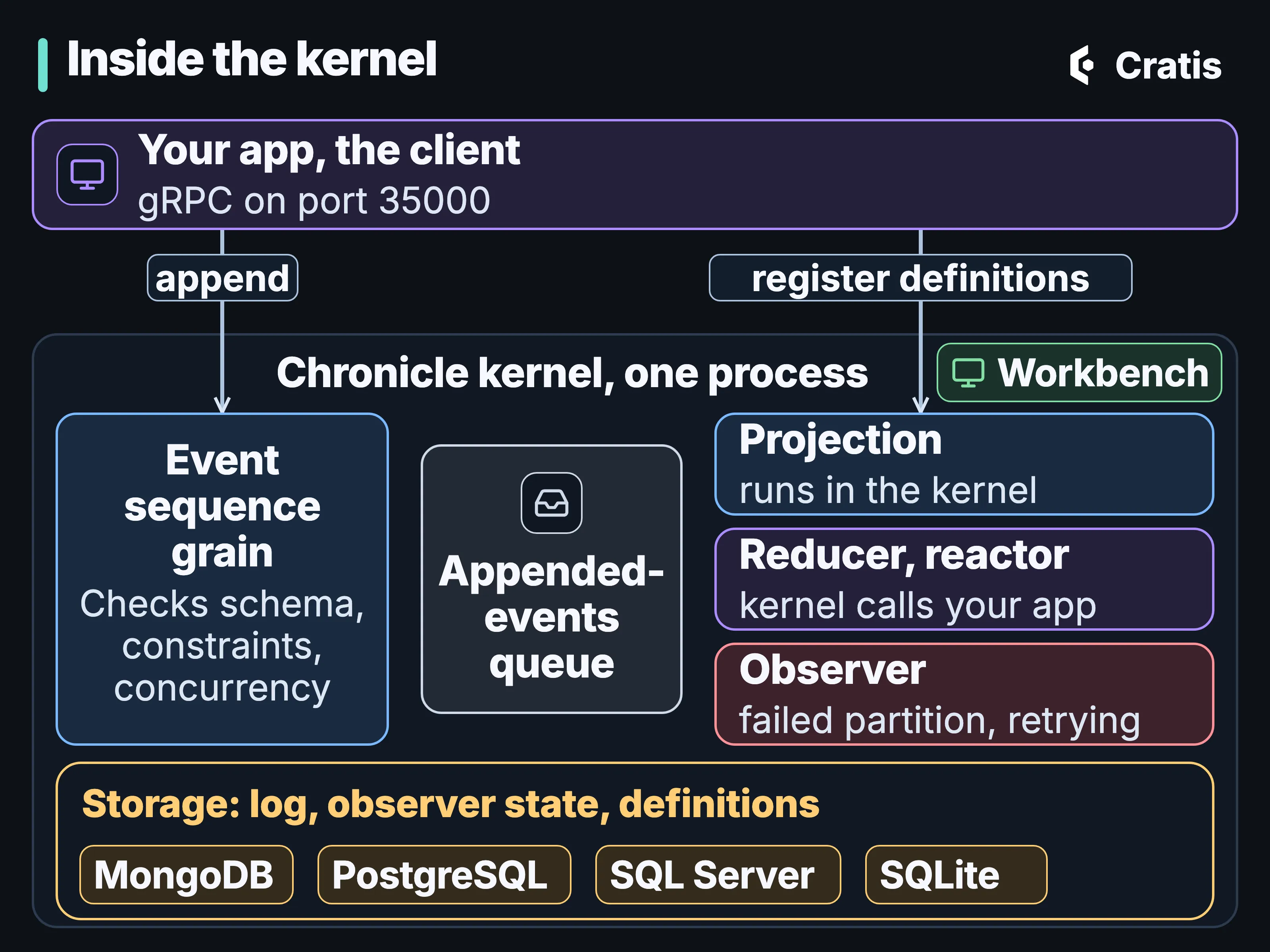

When an author registers, the [Unique] rule on the name is checked, AuthorRegistered is appended, and a moment later the author appears in the list. Everything between the append and the sink write happens inside the kernel.

One process with the log and the bookkeeping

Chronicle is a server process, the kernel, that owns the event log, the bookkeeping about who has processed what, and the processing itself. Your application is a client. It appends events, registers what it wants observed, and for some kinds of processing runs the handler code itself while the kernel drives it. The kernel is a .NET service built on Orleans, and clients reach it over gRPC and HTTP. One server holds several event stores, each split into namespaces, and an event store is a natural boundary for one service’s data. Persistent subscriptions carry events from one store’s outbox to another store’s inbox, and that inbox is named after the source store.

The split between kernel and client decides where code runs:

Piece	Runs in
Event log, schema validation, constraints, concurrency checks, sequence numbering	The kernel
Observer bookkeeping: offsets, catch-up, replay, failed partitions, quarantine	The kernel
Projections, from definition to read model	The kernel
Reducers and reactors	Your application, called by the kernel over a stream
Storage of the log, observer state and definitions	The configured storage provider
Read models	A sink, written by the kernel

Projections are the odd one out. A projection is a definition, built in your application from attributes or a builder, or compiled from text on the server, and then stored and run by the kernel, so no application code executes when a projection processes an event. Reducers and reactors are code. For those the client opens a bidirectional gRPC stream, the kernel sends events down it and the client sends results back. A reducer’s result is still stored by the kernel, so your code decides the next state and Chronicle writes it. From event to read model is about the projection side of that table.

Chronicle listens on three ports. One TLS port, 35000, carries gRPC over HTTP/2 together with REST, the Workbench, OAuth and health checks over HTTP/1.1. The Orleans silo listens on 11111 and the Orleans gateway on 30000. The Workbench is served by the kernel itself and is on by default.

The kernel holds the log and the bookkeeping. Your code runs outside it, except for projections.

Stores, namespaces and sequences

An event store is a special-purpose database for events and for everything built on them: event types, observers and projections. It lives in the database you configure. Inside a store, a namespace separates one body of data from another. There’s always a Default one, and every namespace keeps its data in its own database in the underlying storage.

Because each namespace is its own database, one tenant’s events, observer state and read models sit apart from another’s, with their own indexes. Arc’s Chronicle integration maps each tenant in the author feature to a namespace, and a constraint is scoped to its sequence and namespace, which is how “unique within the organization” falls out without a per-tenant check. Tenancy and identity end to end follows the tenant from the edge.

Within a namespace, events live in event sequences. The event log is the one you append to almost every time. Outbox and inbox sequences exist for subscriptions between stores. In the kernel, each sequence is an Orleans grain, keyed by the sequence id, the event store and the namespace together, so every append to the author feature’s event log in one tenant goes through the same grain.

Each event also has a subject, the identity its personal data is keyed to, which is the event source unless the event or the append names another. Each event type can have several generations, one per version of its shape, and the kernel stores the content of every generation.

The life of an append

An append arrives at that grain, and the grain does its work in a fixed order before it answers:

It refreshes its constraints if their definitions changed since it last looked.
It validates the content against the event type’s registered JSON schema. A mismatch comes back as a constraint violation of type Schema.
It applies the handling for personal data and checks constraints, such as a unique property or a unique event type, against the unencrypted content.
It runs the concurrency check for the scope the client asked for, and the result reports whether a check was performed.
It numbers the events from the sequence’s current position, computes a content hash per generation and writes them to storage.
It hands the appended events to a queue for the observers and updates the constraint indexes. The sequence’s own state is saved as a periodic snapshot and rebuilt from the log’s tail when the grain activates.
It returns.

Cross-cutting properties are added by the .NET client before the event is sent.

Step 5 has a retry of its own. Storage can report that a sequence number is already taken, in which case the kernel re-numbers from the next free number and writes again. The sequence’s own number advances only after the write is durable, so a failed write can’t leave a gap in the numbering or a tail that points at an event that was never stored.

In step 4, the first append into a concurrency scope isn’t checked by default. When the scope has no events yet, there’s nothing to compare against and the check is skipped. A client that needs the first append checked opts in, in .NET with ExpectingNoMatchingEvent(). The default concurrency check is also a .NET client behavior, and the other clients request none unless asked. Rules that hold when you write covers scopes and decision reads.

For the author feature, step 3 is where the name rule lives. Two requests registering the same name arrive in the same second, both reach the same grain, and the second one is rejected by the [Unique] constraint before it gets a number. No read model was consulted, which is why the rule doesn’t race.

What comes back tells you what happened, up to a point. A reported schema, constraint or concurrency violation means the event wasn’t appended. A reported error, a timeout or a dropped connection means the outcome is unknown, and appending again blindly can store the event twice. An expected sequence number or a constraint turns that retry into a safe one.

If handing the events to the observers’ queue fails in step 6, the kernel moves the affected observers into catch-up, so they read the events back from storage. Either way, the call returns without waiting for any observer.

Observers and partitions

Everything that processes events is an observer: projections, reducers and reactors alike. An observer subscribes to a set of event types on a sequence and keeps an offset, the sequence number of the next event it hasn’t handled. Each observer is its own grain in the kernel with its own state machine, whose states are routing, observing, catching up, replaying, disconnected and quarantined.

On activation an observer starts in routing, compares its offset with the tail of the sequence and decides where to go. If it’s current, it observes new events as they’re appended. If it’s behind, because it’s new, was disconnected or had its queue spilled, it catches up by walking the sequence to the tail. For projections, catch-up is a single job step that walks the sequence in global order, started on the observer’s own turn, so registering a projection doesn’t block while history is read. A replay is different. It starts again from the beginning and rebuilds what the observer produces.

Adding event types to an observer can trigger a rewind. When an observer starts consuming more event types and matching events already exist before its offset, it’s rewound to the beginning and replayed, because those older events were never seen. Projections refine that rule by working out whether a change needs a full replay at all, which From event to read model covers.

Events reach an observer per partition, and a partition is the events of one event source. For the author feature, each author is a partition. When a reducer or reactor runs in several instances of your application, the kernel spreads partitions round-robin by partition key, so one author’s events stay on one instance while it’s connected, and arrive in order.

Removing an observer deletes its bookkeeping and nothing else. Data it wrote to a sink stays where it is, and registering the same observer again starts a fresh replay. Removal is refused while any client is still subscribed to the observer.

When a handler fails

An observer that has stopped looks exactly like one with nothing to do. For the author feature, that’s an author who registered fine and never appears in the list. The command succeeded and the event is in the log, and yet the list is wrong. Lag on its own is ambiguous, while a failed partition is recorded and can be looked up.

When handling a partition fails, the kernel records the partition as a failed partition and schedules a retry through an Orleans reminder, with exponential backoff. The other partitions keep flowing. One broken author doesn’t hold up everyone else’s, and the failure is addressable by your own key, the author’s id, which is the key you’ll be looking for when someone reports a missing author.

The retry policy is configuration with documented defaults. A failed partition is retried up to 10 times, with a 1-second base delay that doubles with each attempt, capped at 600 seconds. After that the partition is quarantined, automatic retries stop, and it waits for someone to look. Separately, a whole observer can be quarantined once a set number or share of its partitions have failed. Both thresholds are off by default, and a partition whose last attempt timed out doesn’t count toward them. The kernel waits 30 seconds for a subscriber by default, and when it gives up, the subscriber may still be working, so a handler has to cope with seeing the same event again. A watchdog runs every 60 seconds. In the observer configuration, maxRetryAttempts: 0 retries forever and subscriberTimeout: 0 waits indefinitely.

Each recorded attempt has a kind: Handling when the handler threw, Timeout when the subscriber didn’t answer in time, Disconnected when the subscriber was gone by the time the events reached it, or Unknown when nothing classified the failure. Attempts recorded before failures carried a kind read back as Unknown. A timeout records congestion rather than rejected events: the wait ended, not necessarily the handler’s work.

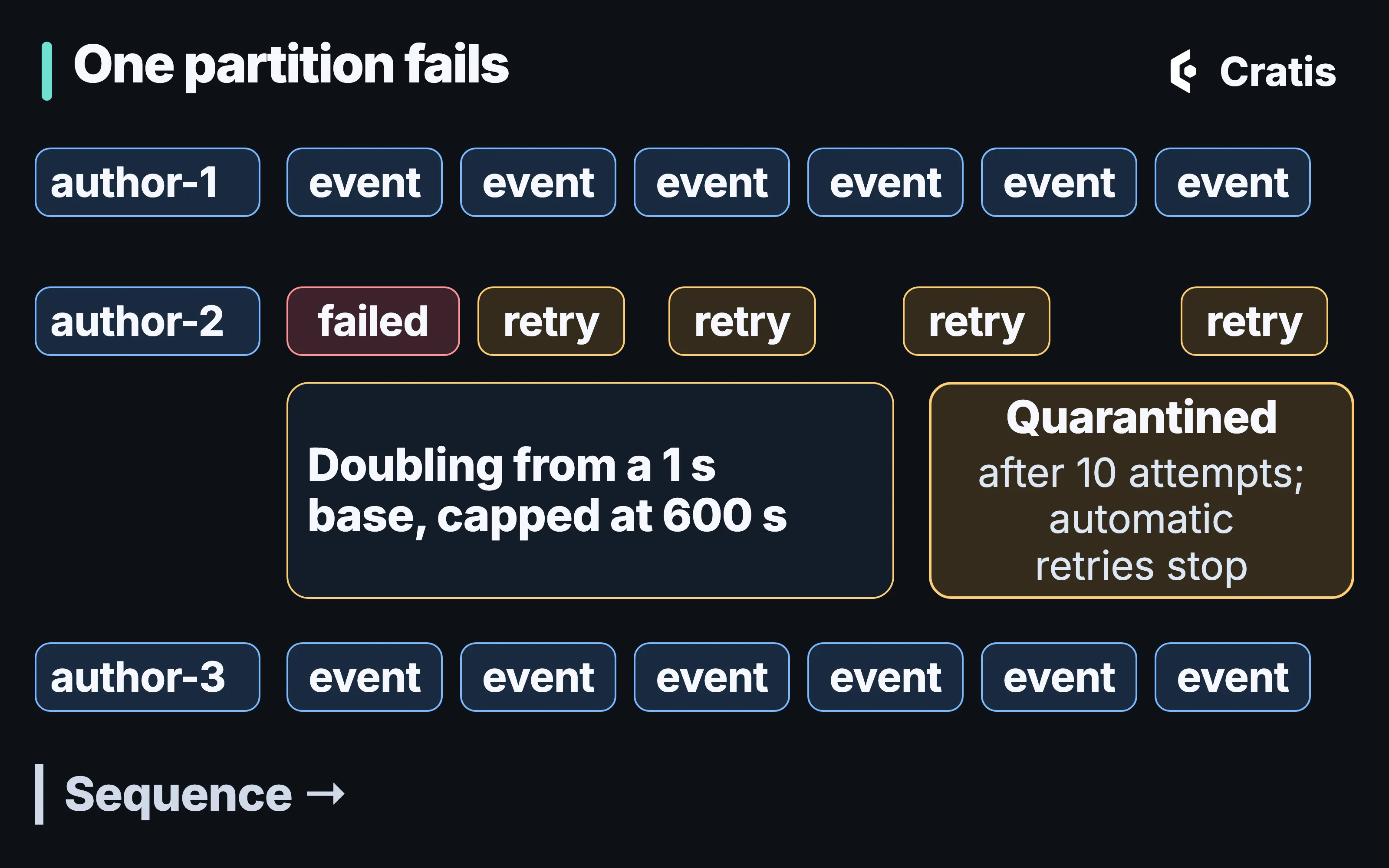

One author’s partition retries and then stops. The other authors keep flowing.

The error from each attempt is kept with the failed partition. Asking for one more attempt on one partition is much less work than replaying a whole observer, and in a runbook it belongs first. Workbench and The Cratis CLI show where you see and act on failed partitions.

What the ordering covers

Under Chronicle’s consistency model, events from the same event source are processed in order and at least once, with retries. Consistency between the event log and a read model is eventual, events in different partitions have no ordering relative to each other, and nothing is updated synchronously with the append.

At-least-once means a handler can see an event twice, after a timeout or a retry, and a reactor that sends an email needs to make the second send harmless. Per-partition order means a projection for one author never sees AuthorRegistered after a later event for the same author. Nothing orders two authors against each other.

More than one server

The kernel runs as a single node unless configured otherwise, because the default clustering is Localhost. A real cluster needs MongoDB clustering and the same clusterId and serviceId on every node. Two servers left on the default and pointed at the same database each form their own single-node cluster. The server logs a warning and still starts. Nodes can take the eventSequences and observers roles separately. Chronicle publishes no throughput or scale figures, and Jobs, scale and performance covers running more than one.

Where the data sits

The event log, observer state and projection definitions are stored through the configured storage provider: MongoDB by default, or PostgreSQL, SQL Server or SQLite, with an in-memory provider for tests. Read models go to a sink, which the kernel also writes. The sinks differ: the SQL sink, for one, doesn’t create the indexes declared with [Index].

The append returns once the sequence grain is done, so a read straight after a write can miss the event. From event to read model covers passive read models and WaitForCompletion() for that case.

Previous: Part 01 — Events are facts
Next: Part 03 — From event to read model
